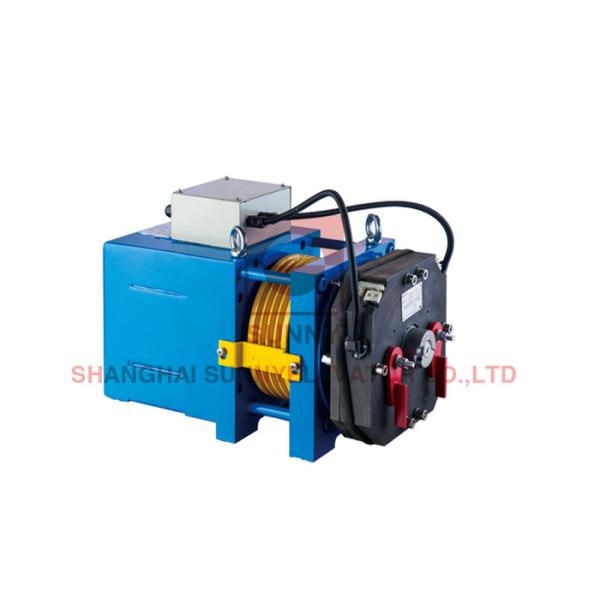

Elevator Gearless Traction Machine with Microcomputer Frequency
Control
Type: SN-WJY140H
Control Type: Microcomputer Frequency Control
Use of Occasions: Indoor Type
Transport Package: Non-Wooden
Specification: ISO9001 / CCC / CSA / KTL
PRODUCT DESCRIPCTION
| Product Name | Elevator Traction Machine gearless Elevator Machine |
| Traction ratio | 2:1 |
| Rated capacity | 320,450,630KGS |
| Rated elevator speed | 0.63,1.0/1.6/1.75m/s |
| Max. shaft load | 2000 KGS |
| Brake voltage | DC110V |
| Certificate | ISO9001 / CCC |
| Features | Low-energy, Low noises, Non-pollution, Less maintenance |
| Payments | T/T, L/C |
Type: SN-MINI 5C
This series of Gearless Machine adopts an outer rotor structure and
a unique fixed center axis design, making the stress of the host
machine more reasonable.
The excellent magnetic field design allows the host to run smoothly
with low noise and low temperature rise.
Quick Details
Type: Elevators
Usage: Car Elevators
Drive Type: AC
Elevator Type: Passenger Elevators
Traction ratio: 2:1
Rated capacity: 630,800,1000,1150 kg
Rated elevator speed: 0.63,1,1.6,1.75,2.0 m/s
Max. lifting height: 80m
Max. shaft load: 3000/3500kg
Applicable converter: 3 phase 400V
Brake voltage: DC110v
Number of motor poles: 32 poles
Traction sheave diameter: 400/450mm
Product Characteristics
| Traction ratio: | 2:1 |
| Rated capacity: | 630,800,1000,1150 kg |
| Rated elevator speed: | 0.63,1,1.6,1.75,2 m/s |
| Max. lifting height: | 80m |
| Max. shaft load: | 3000/3500kg |
| Applicable converter: | 3 phase 400V |
| Brake voltage: | DC110V |
| Number of motor poles: | 32 poles |
| Traction sheave diameter: | Ø 400/450mm |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements.
Configuration is not only for wire rope and rated load, but also
considered the size of the traction, as a result, the tensile
strength of wire rope is greater than the weight of the lift. The
safety factor is equipped with more than four wire rope. So it
won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator
running?
If it occurs, the elevator will automatically stop due to the
electrical and mechanical safety device. In case of power
failure,elevator brakes will automatically taken. In addition, the
power supply departments such as planned outage, prior notice are
also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of
elevator will automatically restart without any danger. With anti
clamping switch, once the gate touched, this switching action make
the elevator unable to be closed and even reopened. In addition,
closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the
(tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily
proportional to the operation complexity. Therefore, escalators
designed by us apply an integrated structure, so that the equipment
is more precise and more efficient and allows easier and more
convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
