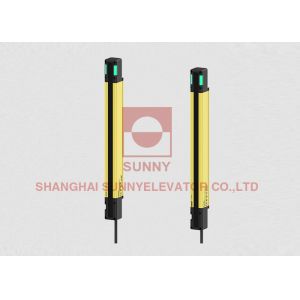

International Safety Standard Elevator Lift Light Curtain Sensor
Safety Light Curtains (Standard Type)
IDEA 2020 Good Design 2019 K Design 2019 Gold Pinup 2018
The SFL series safety light curtains are installed in potentially
dangerous or hazardous areas to safeguard personnel from injury.
The light curtains feature proven technology from Autonics area
sensors and mapping sensors. The light curtains are built to meet
international safety standards and regulations. Various detection
models (finger/hand/hand-body detection) and safety functions are
available for diverse applications.
Main features
International safety standard and regulation compliance
: Type 4 ESPE(AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL
Listed, S-Mark, KCs(Select models) |
| 3 detection type models available (finger, hand, hand-body
detection) |
Various models by protection height
: Ø14 mm (finger detection type) 144 to 1,008 mm
: Ø20 mm (hand detection type) 183 to 1,023 mm
: Ø30 mm (hand-body detection type) 1,025 to 1,850 mm |
Various safety-related functions & self-diagnosis functions
- Safety-related : interlock, lockout, EDM, muting, override,
blanking, reduced resolution, etc.
- Self-diagnosis : mutual interference protection, ambient light
detection, malfunction sensor detection |
| Selectable detection distance (short/long mode) & Switch control
output settings (NPN/PNP output) |
| Operation status reading with 7-segment display and LED indicators |
| Easy beam adjustment with top and bottom beam indicators |
| Output display indicator on top displays light received/blocked
status and muting status. Additional lamp not required. |
| 4 non-safety outputs for various applications (2 AUX, 2 lamp) |
FAQ
Q1: Is there free samples?
A: Yes,we could offer free sample if the unit price is less than
10usd, please contact me.
Q2: Customized logo on the elevator parts?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter, there is
min order quantity.
Q3: Get the after-service?
A: We will send you the spare parts by free if the problems caused
by us.
Q4: Inspection procedures for elevator parts?
A: 100% self-inspection before packing.
Q5: Mix the 20ft container?
A: Yes,let us know your requirments please
Q6: Visit to your company before the order?
A: Sure,welcome to visit us. Our location is near by Shanghai
Hongqiao airport.
Q7: By paypal and western union or cash or CNY?
A: Yes,please contact us for detail.
Q8: Delivery time of the parts?
A: Depend on the products your asked, please contact us for detail.
Q9: How to place order?
A: 1.let us know your requirment; 2 confirm the detail we will make
proforma invoice for you; 3.send us payment and bankslip,or you
could pay on alibaba we will release work order accordingly.4.We
will send goods to you with the shipping metherd we confirmed.
